Upgrade Motorsport Brake Kit with two super lightweight spherical bearing master cylinders and bias bar with tube.

FS KIT 2B - .625 & .7 Spherical Bearing Master Cylinder & Bias Bar with Tube

Name: FS KIT 2B - .625 & .7 Spherical Bearing Master Cylinder & Bias Bar with Tube
SKU: FS-KIT-2B

SKU: FS-KIT-2B

Owing to popular demand, we have developed a selection of kits that provide all the exceptional quality and dependability long associated with Upgrade Motorsport products. These carefully assembled bundles include the most sought-after components, reflecting the preferences of our customers over the past ten years.

By combining our most popular products into convenient packages, we make it easier than ever to achieve superior results. Whether you are a professional or an enthusiast, these kits provide everything needed for a high-quality upgrade.

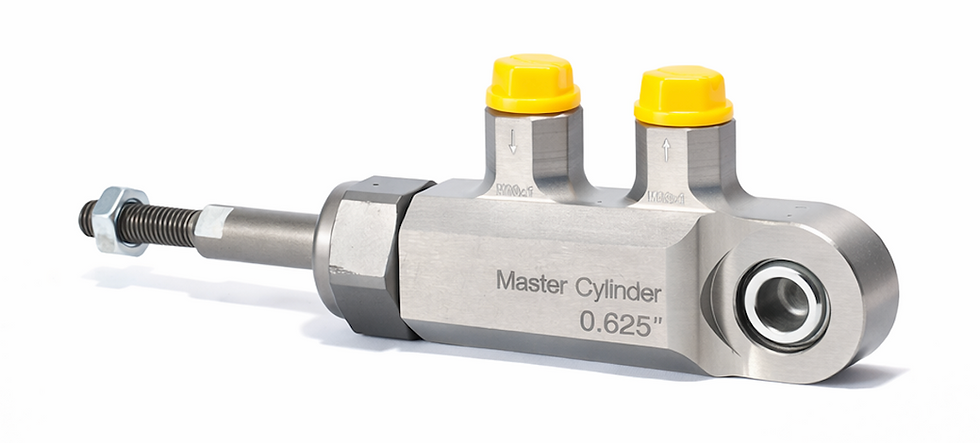

Upgrade Motorsport Spherical Bearing Mount Master Cylinder - .625 Bore & .7 Bore - Remote Reservoir Fitment & Quality Ball Joints

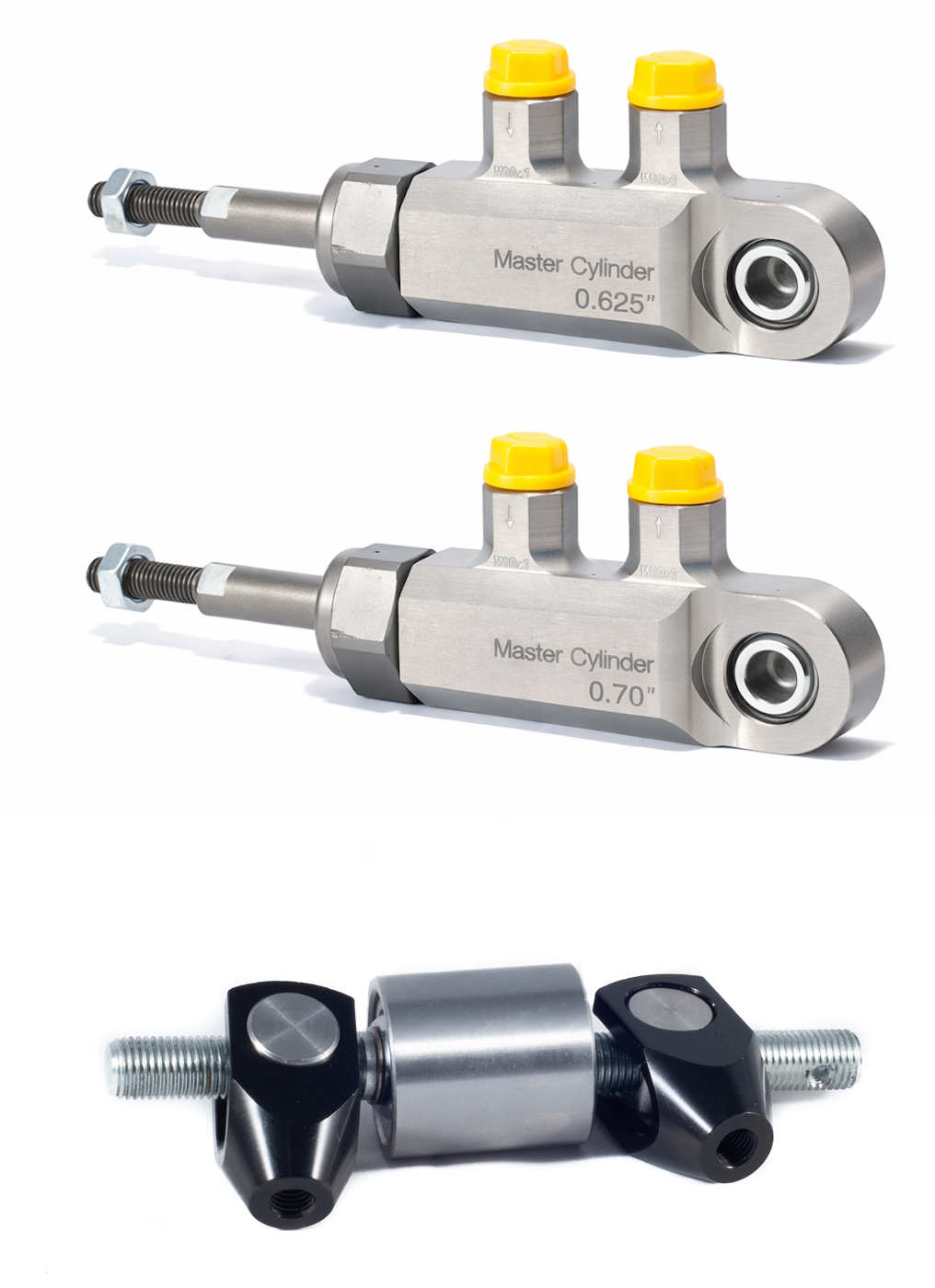

Kit Contents:

1 x UM-MC-SB-01 - Spherical Bearing Mount Master Cylinder - .625 Bore

1 x UM-MC-SB-02 - Spherical Bearing Mount Master Cylinder - .7 Bore

1 x SKU: UM-BB-01 - Quality Bias Bar & Tube

Upgrade Motorsport Push Type Master Cylinder suitable for use in brake or clutch applications. The body is constructed from hard anodised aerospace grade aluminium to provide high strength and light weight.

The cylinder pivots on a 8mm I/D high grade spherical bearing to allow it to rotate with the arc of the pedal and the offset of the balance bar, minimising side loads on the piston seals.

Small compact and incredibly lightweight design allows installation into tighter envelopes, still utilising all the quality and performance techniques required to withstand the challenging world of motorsport.

Specifications:

Compact design push type master cylinder
8mm I/D high grade spherical bearing - minimise side loads on piston to increase cylinder performance and durability
Scraper seal to prevent ingress of dust and debris
Maximum stroke: 20mm
Fluid inlet port M10x1 Tightening torque 17-20Nm with a copper washer
Fluid outlet port M10X1 Tightening torque 17-20Nm with a copper washer
To avoid trapping air, install with the ports uppermost, fluid outlet port must not be below the horizontal axis.
Average weight 0.13Kg / 130g
Gun Metal Grey Anodised surface treatment
Push Rod Thread: 5/16” UNF
Suitable for Pedal Assemblies and Hydraulic Handbrakes

Upgrade Motorsport High Quality Bias Bar / Balance Bar Assembly with Steel Tube

This Upgrade Motorsport bias bar assembly is the perfect upgrade for your vehicle's performance braking system. The 7/16-20 UNF balance bar thread and 5/16-24 UNF clevis thread ensure a secure fit and maximum control.

All Upgrade Motorsport products are high-quality performance parts that are built to last. Whether you're a seasoned racer or a beginner, this bias bar assembly is an excellent choice for anyone who wants to improve their vehicle's braking performance.

Kit Content: Upgrade Motorsport Brake Bias Bar & Tube

Specifications:
